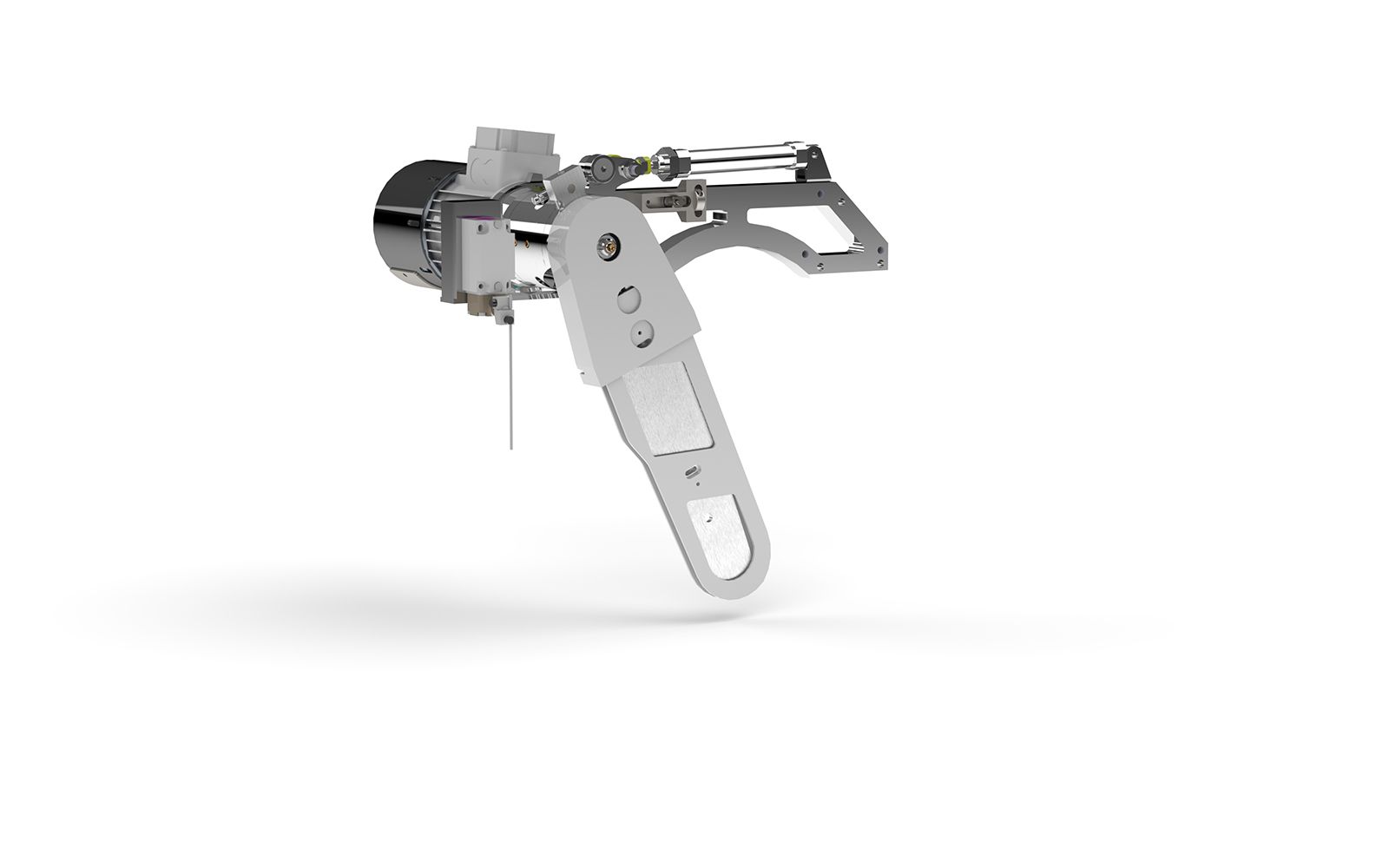

Chain saw scorer

The scorer acts as a system to clean the wood which is placed in front of the saw blade.

Rotation speed of blade TRON18H53
Linear speed of chain9m/s
Scoring depth10 mm
Dimensions700 x 500 x 1400 mm
Weight18 Kg

Main features

The scorer acts as a system to clean the wood which is placed in front of the saw blade. Scoring evacuates foreign bodies to reduce deviations at the approach, improve the quality of sawing but also increase the service life of the blade and reduce costs (less maintenance operations on the blade, tools are changed less often). The chain scorer is designed for frames up to 1400 mm. The installation is fast and low cost, its light weight allows the scorer to be fixed on the pressure bar. The chain is automatically lubricated by pump.

Bespoke installation
Available with a driven jib
Possibility of controlling the scorer with the carriage
