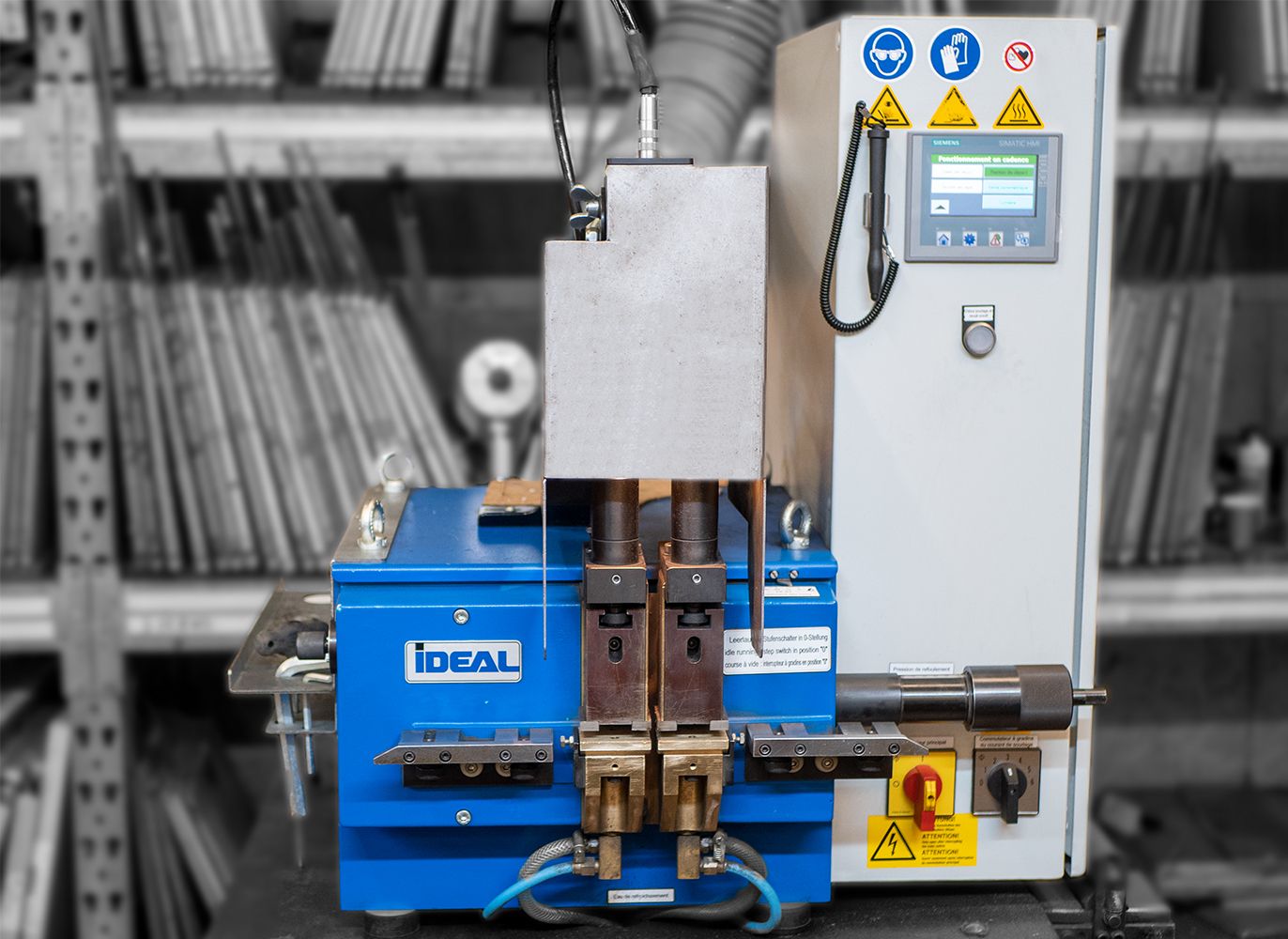

BAS 065-11

The BAS 065-11 is designed for woodworking band saw blades from 10 to 60 mm.

Band saw blade width Up to 60 mm
Thickness of band saw blade 0,4 to 1,6 mm
Dimensions1300 x 1100 x 1000 mm
Weight290 Kg

Main features

The BAS 065-11 welding machine is designed for woodworking band saw blades from 10 to 60 mm wide and bi-metal blades from 10 to 54 mm wide. It is equipped with a hydraulic clamping device. Flash welding is carried out by a driven cam. An annealing device is included for continuous adjustment of the tension. The annealing time can be set from 0 - 10 minutes. Water cooling.
